CUTTING & FORMING DIES FOR PRODUCTION MACHINERY CV-CMD
The CV-CMD series includes a wide range of cutting, forming, and decorative dies for dough-processing machinery and production lines.
Each die can be designed and manufactured according to the type of product, required shape, final dimensions, and production line configuration on which it will be installed.
The CV-CMD range covers applications for puff pastry products, donuts, croissants, bakery and pastry products, as well as specialized applications for cutting, scoring, slitting, and creating decorative patterns on dough.
In addition to our own production lines, custom dies can also be designed and manufactured for production lines and machinery from other manufacturers, subject to technical evaluation and compatibility requirements.

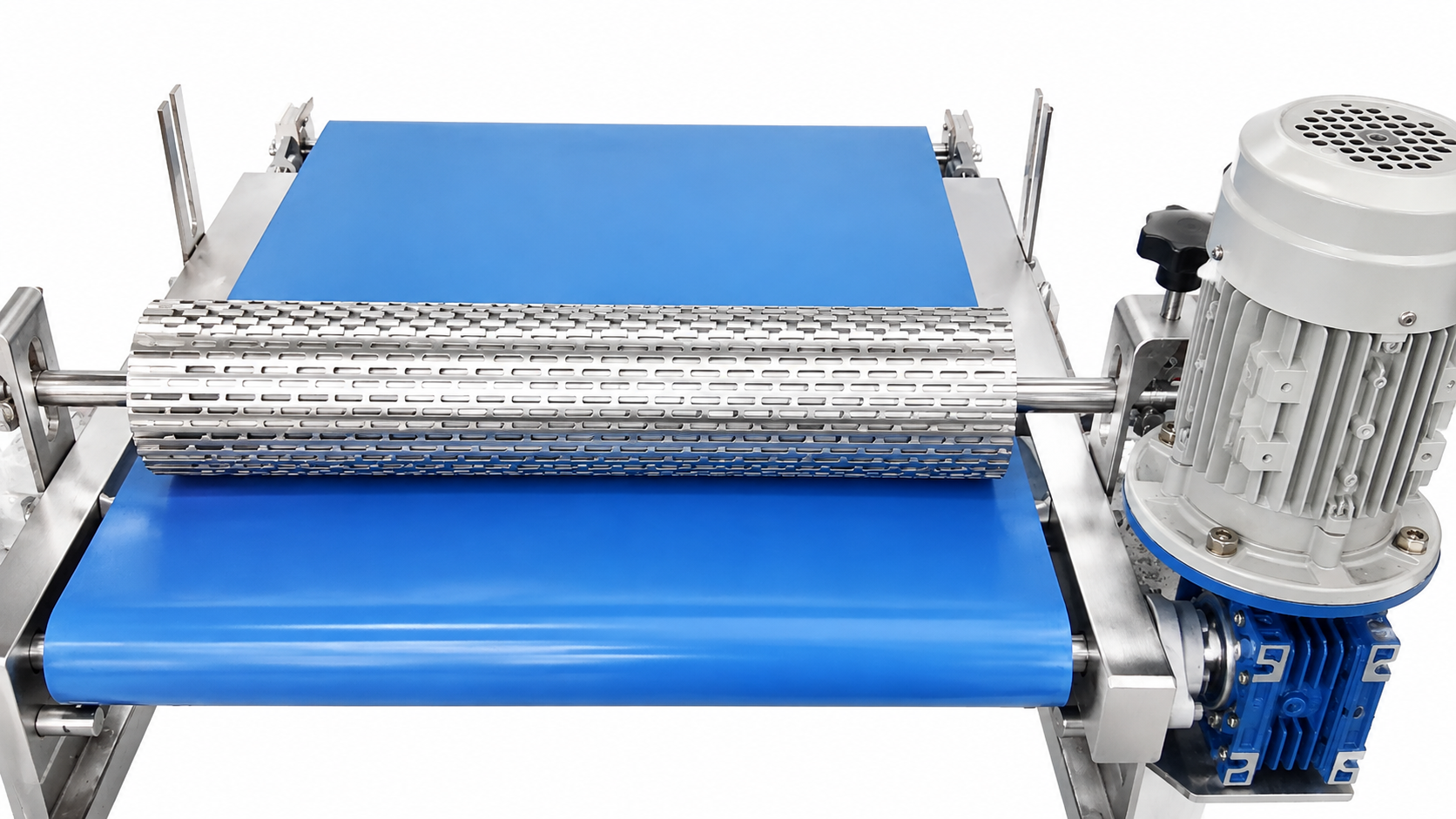

1. Dies for Puff Pastry Production Lines
Special cutting and forming dies are available for puff pastry production lines and continuous dough sheet processing systems.
Depending on the required finished product, the dies can perform:
- Dough sheet cutting
- Final product forming
- Surface scoring
- Decorative pattern creation
- Combined cutting and forming operations
Each die can be designed according to the required dimensions and geometry of the finished product.

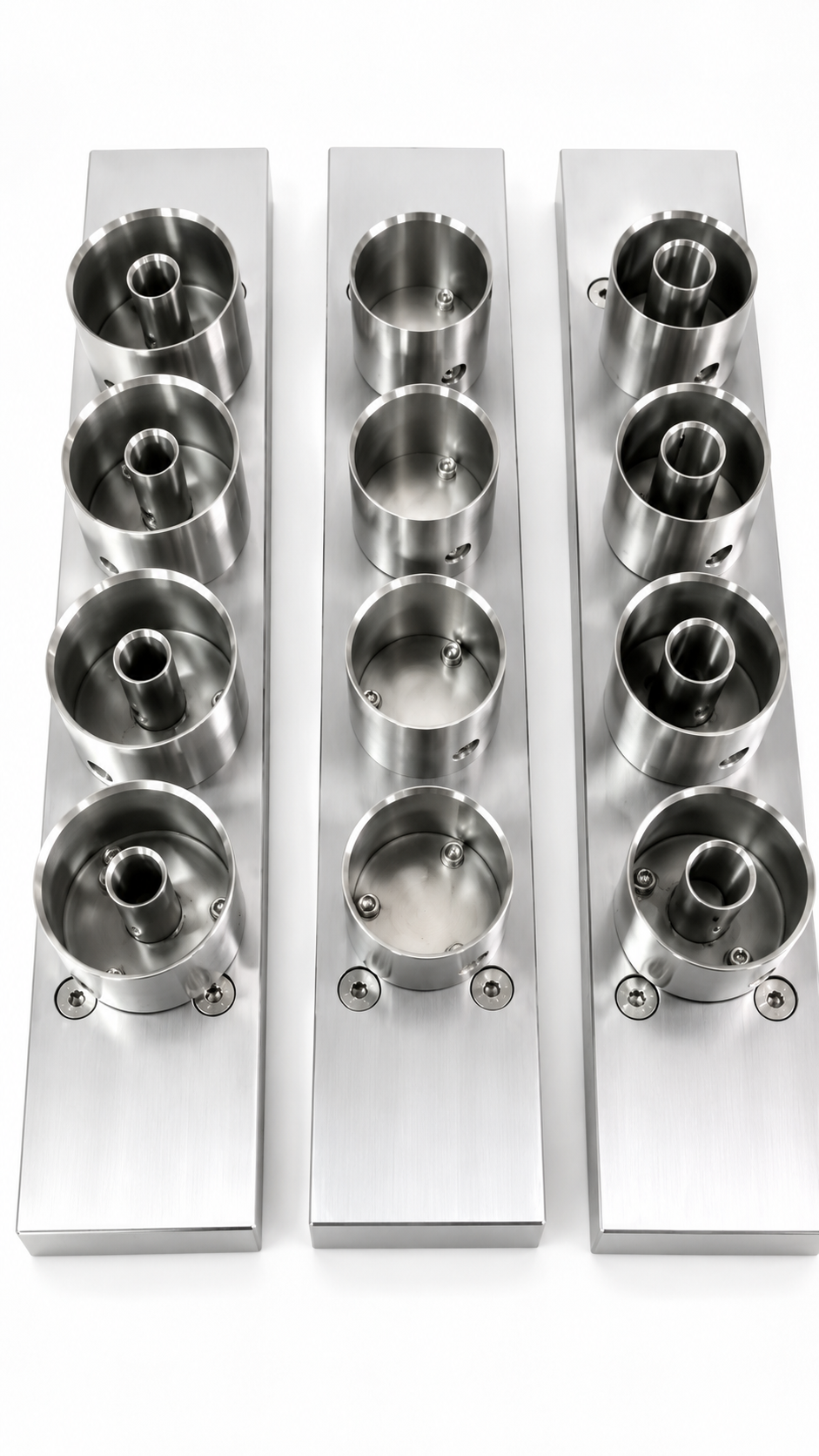

2. Donut Cutting Dies
The CV-CMD range includes cutting dies for donut production, designed for integration with suitable production lines and cutting systems.
The diameter, shape, and final dimensions can be customized according to the required product specifications.
3. Croissant Cutting Dies
Special dies are manufactured for cutting and preparing dough sheets for croissant production.
The geometry and dimensions of the cutting pattern can be adapted according to the required size and weight of the finished product.

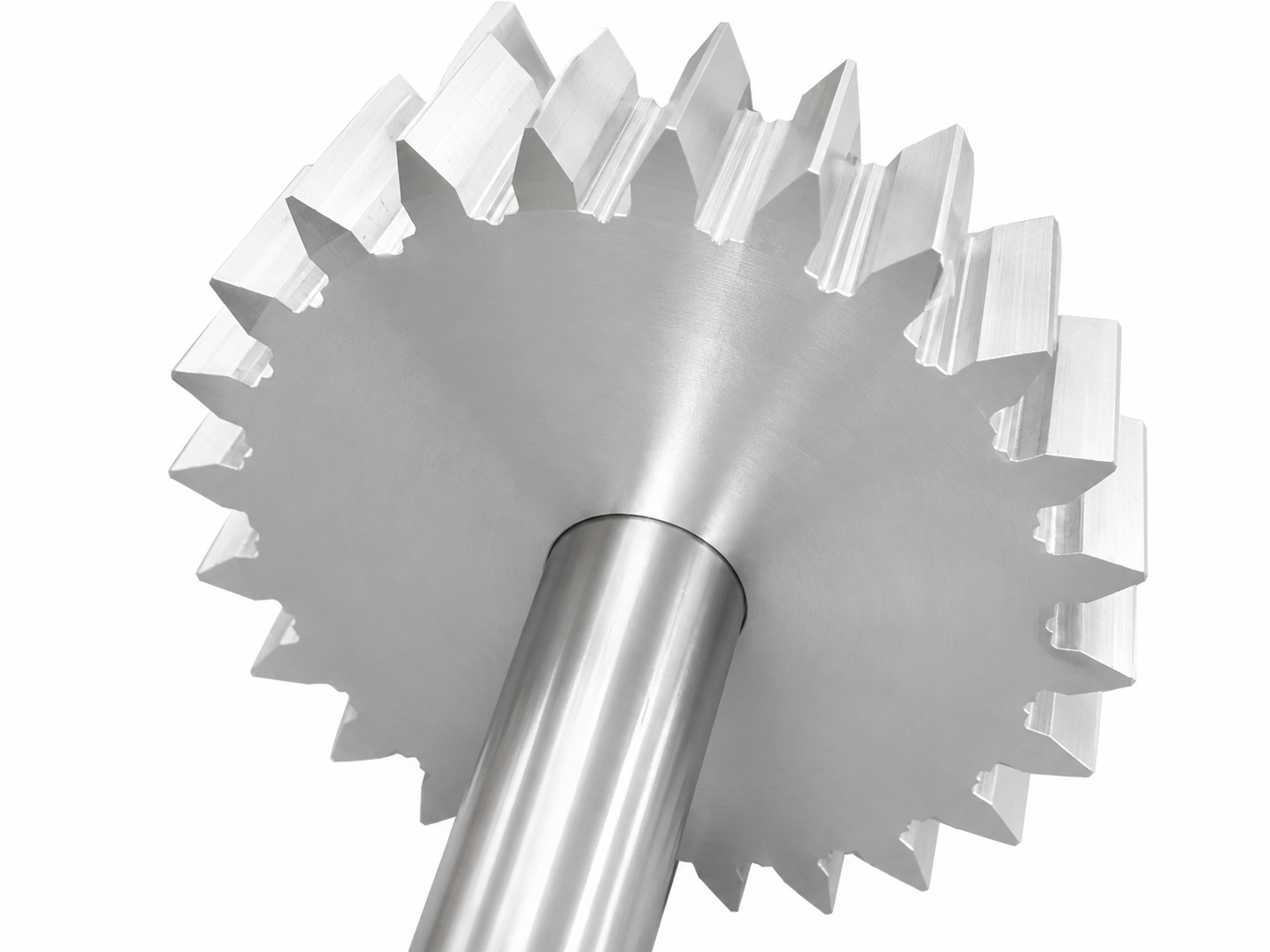

4. Vertical Cutting Dies
The CV-CMD series includes specialized vertical cutting dies for producing different product shapes and dimensions.
Depending on the application, they can be manufactured as:
- Standard cutting dies
- Cutting dies with decorative patterns
- Combined cutting and forming dies
- Custom product geometries
5. Dough Decoration Dies
Dough decoration dies are used to create specific patterns, markings, or decorative impressions on the surface of the dough.
Different designs can be produced according to the type of product and the required final appearance.

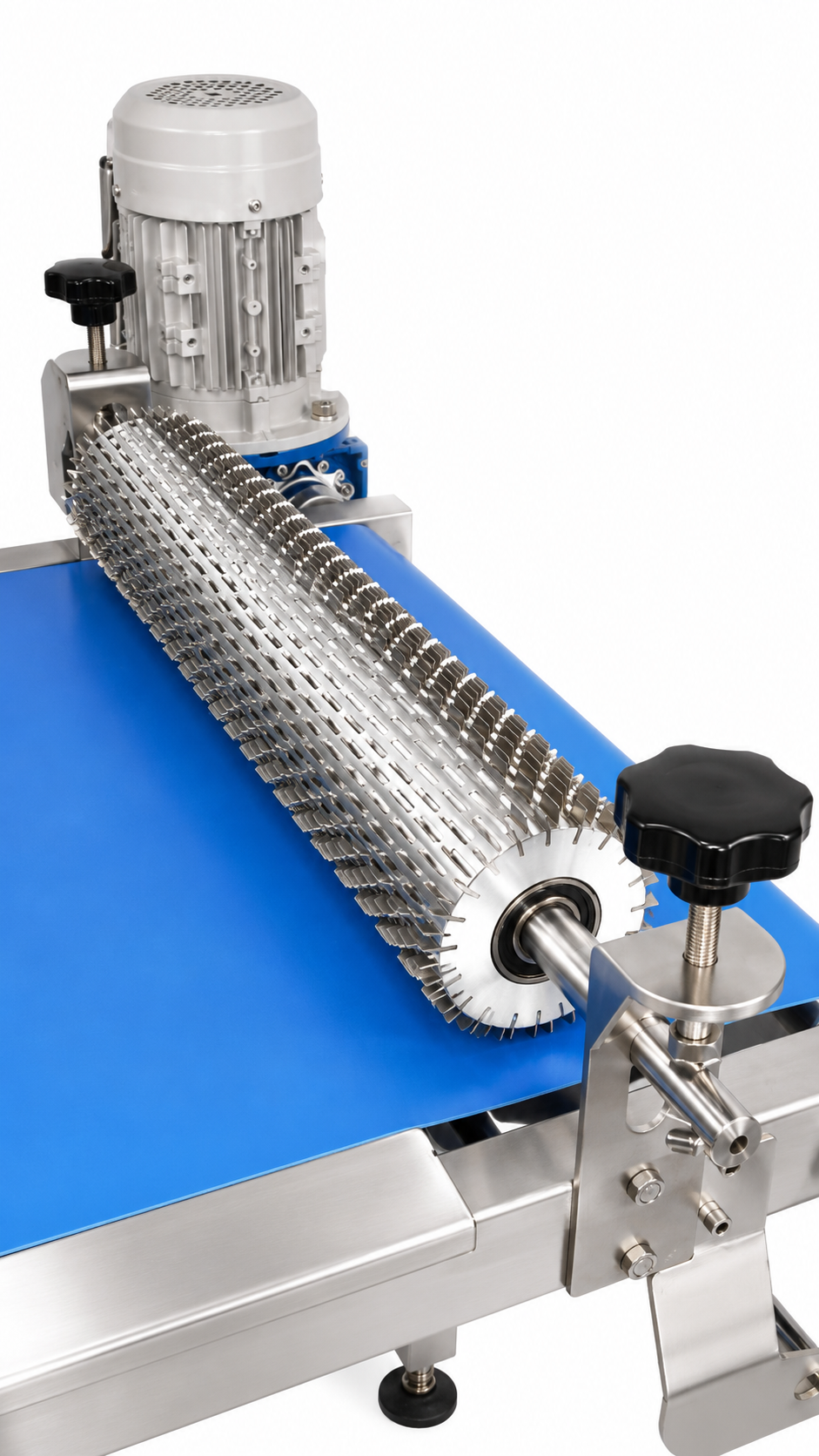

6. Dough Slitting Dies
Special slitting dies can be used to create controlled cuts or slits on the surface of the dough.
The number, position, length, and configuration of the slits can be customized according to the required finished product.

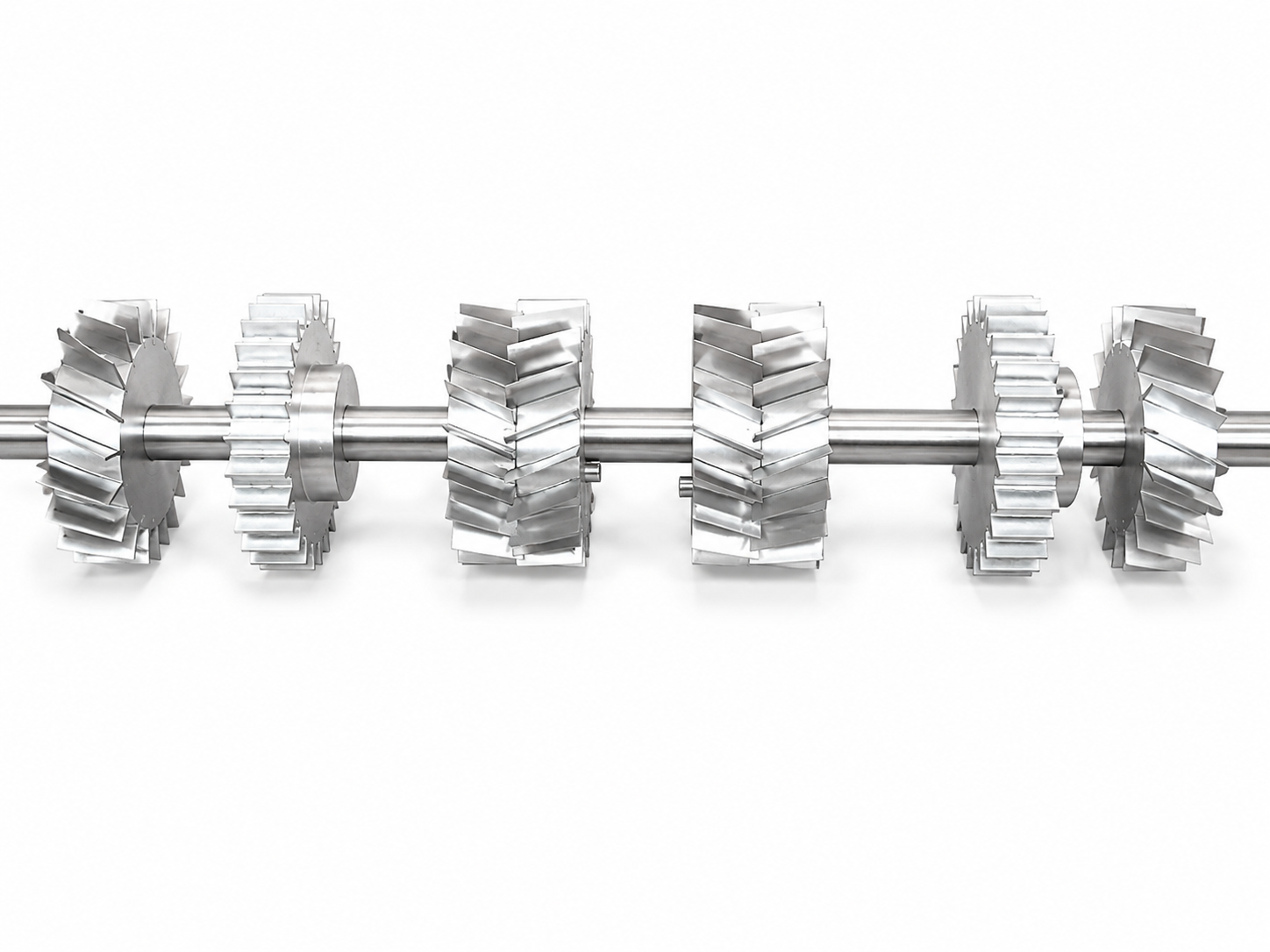

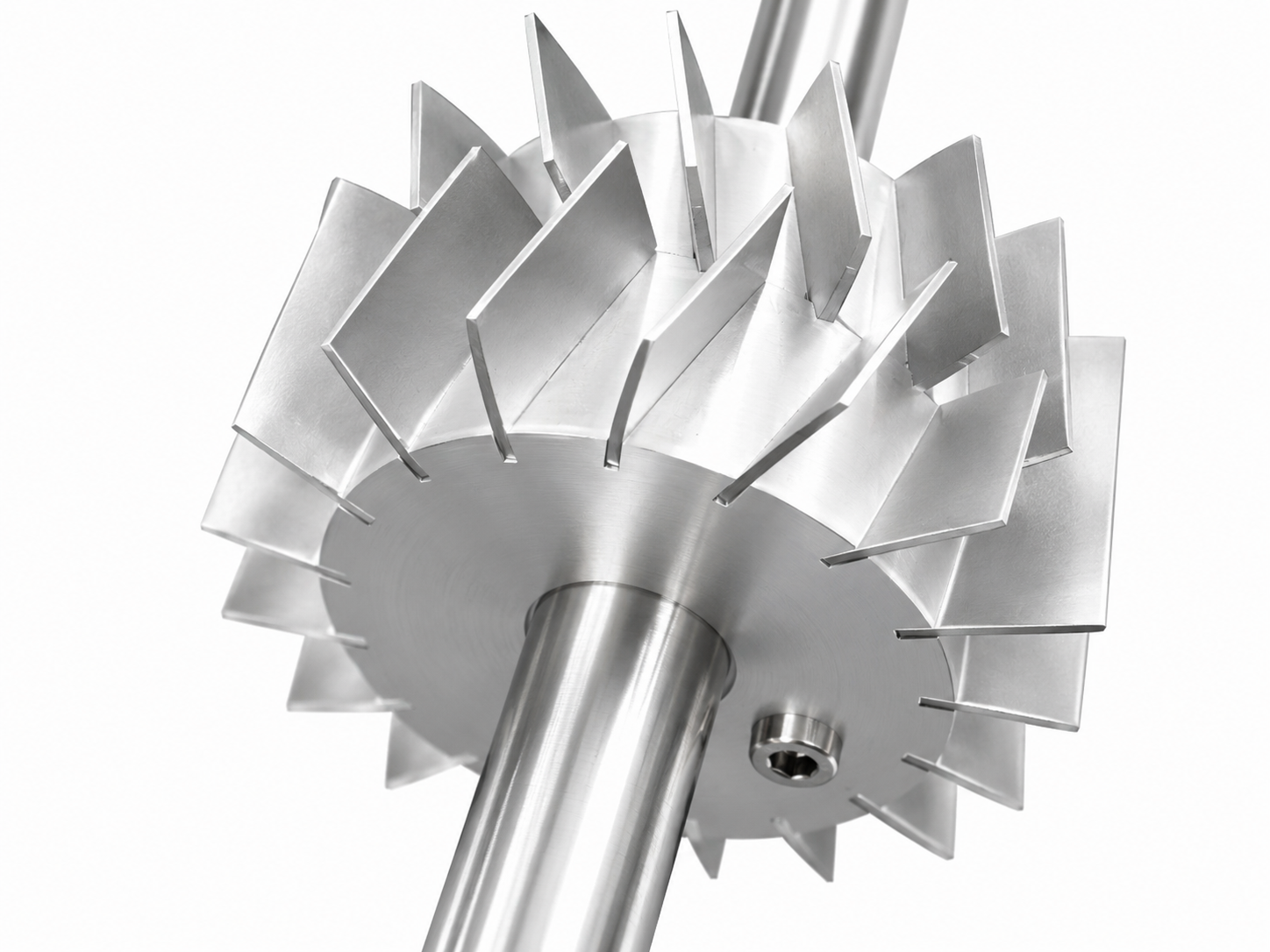

7. Herringbone Pattern Dies
The CV-CMD range also includes specially designed forming dies for creating herringbone patterns and other similar decorative designs.
These dies allow repetitive decorative patterns to be formed on the dough sheet or directly on the final product.
8. Custom-Made Dies
One of the main advantages of the CV-CMD series is the ability to design and manufacture custom dies according to the customer’s specific product requirements.
Each die can be developed according to:
- Product shape
- Final product dimensions
- Dough thickness
- Required cutting method
- Decorative pattern
- Product arrangement on the conveyor
- Production line working width
- Type of cutting machine
- Production capacity requirements
Compatibility with Other Manufacturers’ Production Lines
CV-CMD dies are not limited exclusively to our own production machinery.
Upon request and following a technical evaluation of the existing equipment, a custom die can be designed and manufactured for integration with production lines and cutting machines from other manufacturers.
Technical information such as machine dimensions, mounting system, available working width, and cutting mechanism may be required to ensure correct integration.
CV-CMD Die Categories
- Puff pastry cutting dies
- Puff pastry forming dies
- Donut cutting dies
- Croissant cutting dies
- Vertical cutting dies
- Vertical cutting dies with decorative patterns
- Dough decoration dies
- Dough slitting dies
- Herringbone pattern dies
- Combined cutting and forming dies
- Custom product dies upon request
Technical Specifications
- Series: CV-CMD
- Type: Cutting, forming & decorative dies for dough products
- Application: Industrial and medium-scale production lines
- Suitable Products: Puff pastry, donuts, croissants, and other dough products
- Product Cutting: Yes
- Product Forming: Yes
- Surface Decoration: Yes
- Dough Scoring / Slitting: Yes
- Herringbone Pattern: Available
- Vertical Cutting: Available
- Custom Dimensions: Available upon request
- Custom Designs: Available upon request
- Manufacturing According to Finished Product: Yes
- Compatibility with Our Production Lines: Yes
- Integration with Other Manufacturers’ Machinery: Available subject to technical evaluation
Custom Die Development Process
- The finished product to be manufactured is defined.
- The required dimensions and product shape are determined.
- The production line and cutting machine configuration are evaluated.
- The required cutting, forming, scoring, or decorative process is selected.
- The appropriate CV-CMD die is designed.
- The die is manufactured according to the technical requirements of the application.
- Where required, the die is adapted to the existing cutting system of the production line.
Advantages
- Wide range of cutting and forming dies
- Applications for puff pastry, donuts, croissants, and other dough products
- Cutting, forming, scoring, and decorative pattern capabilities
- Custom designs available upon request
- Adaptation to the required finished product dimensions
- Wide variety of product geometries and decorative patterns
- Custom manufacturing according to specific product requirements
- Compatible with our production lines
- Can be adapted to production lines from other manufacturers
- High flexibility for the development of new products and different production formats
